Operations

Day-to-day tasks: triggering a run, scheduling, reading the run-report, rotating credentials, and common troubleshooting. For installation and quick-start, see the README.

Before triggering a run

The flow needs:

1. A DHIS2 instance reachable from the worker container, with the chap bundle installed and at least one configured-model-with-data-source row registered (chap UI → "Configured models").

2. A Dhis2Credentials block instance for that DHIS2 server. Create one in the Prefect UI:

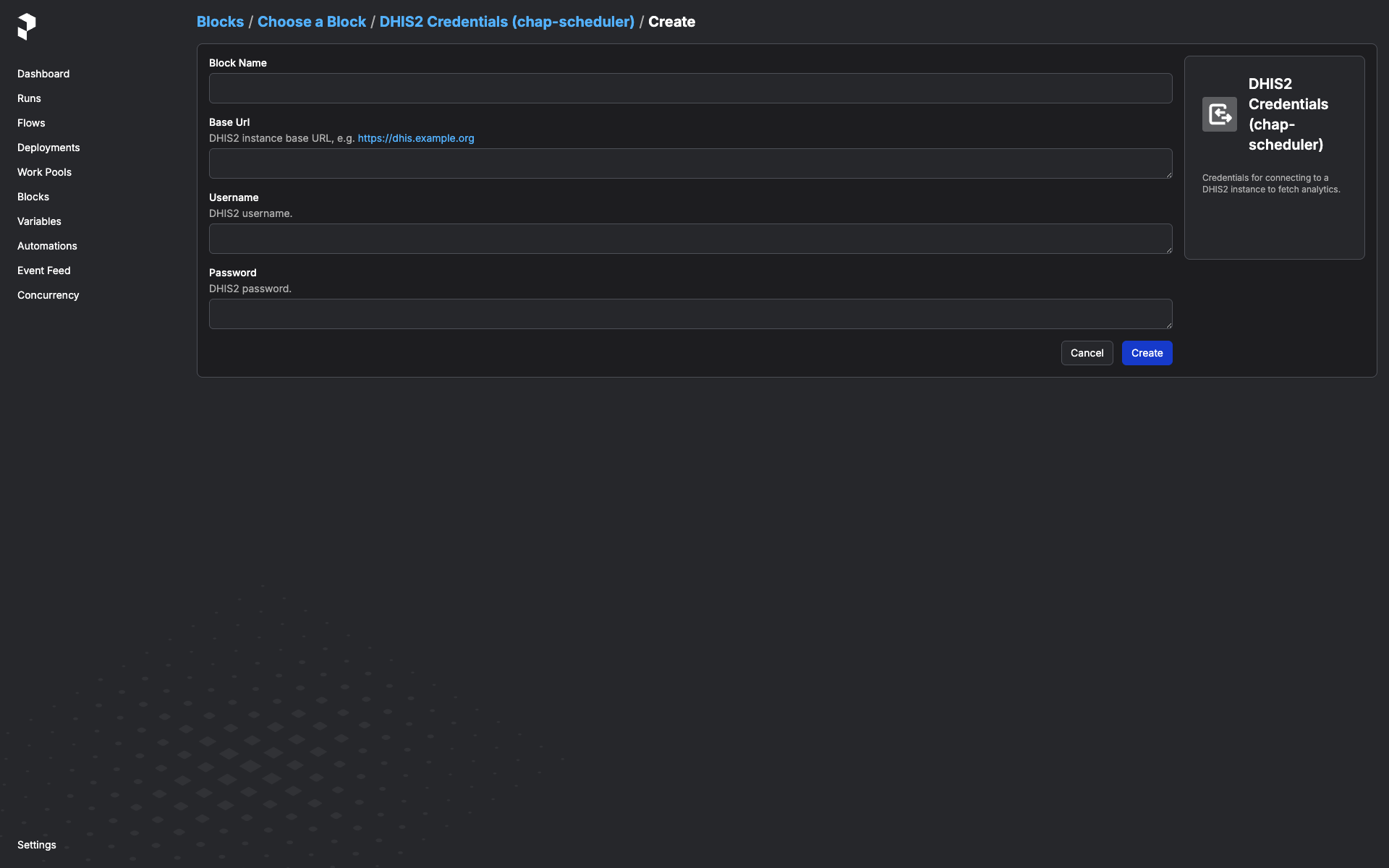

   Open http://127.0.0.1:9090/prefect/blocks/catalog → DHIS2 Credentials (chap-scheduler) → + Add → fill in base_url, username, password → save with a memorable name like prod-dhis2.

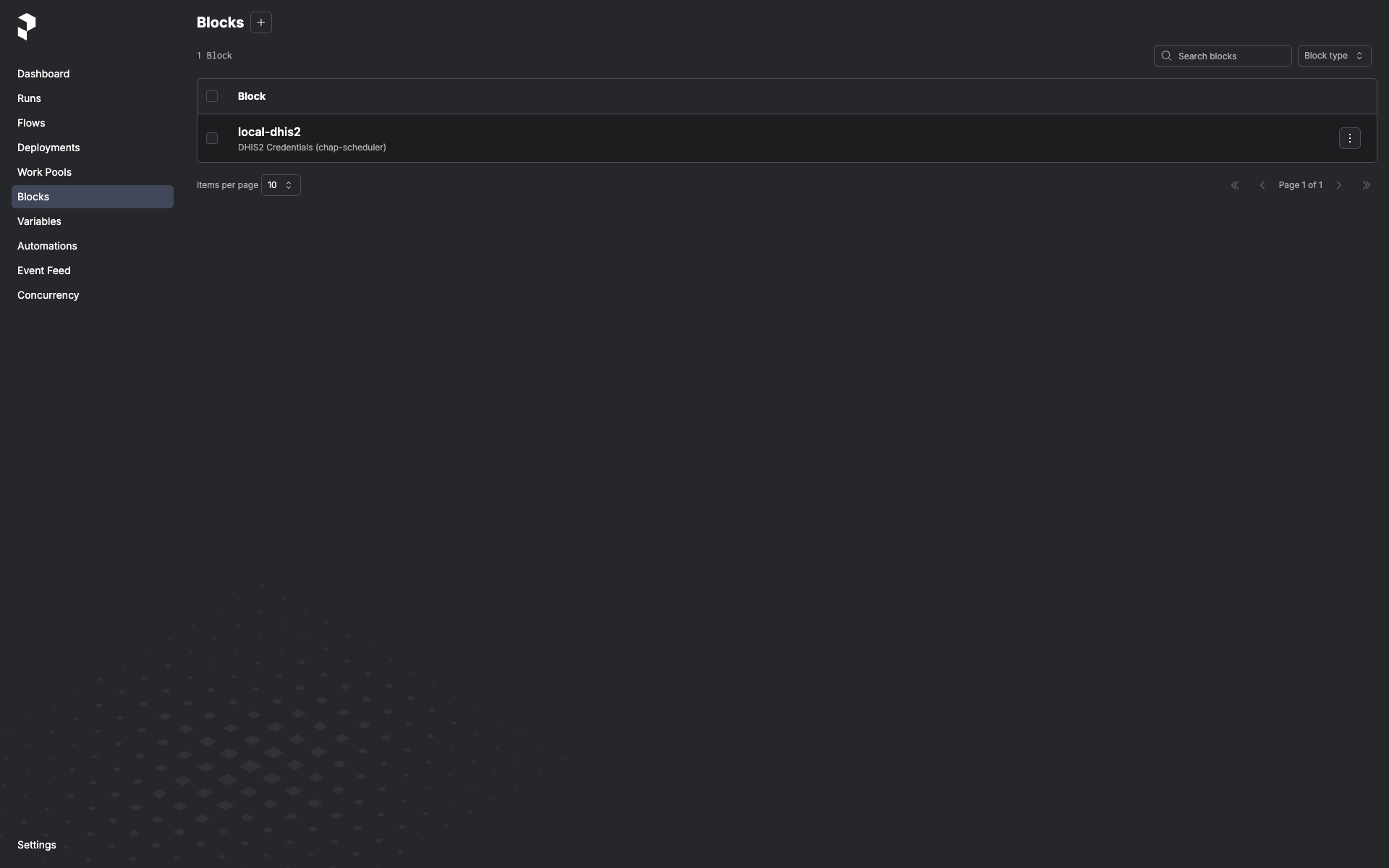

   Once saved, the block instance shows up in the Blocks list and is pickable from any flow that takes a Dhis2Credentials parameter:



Trigger a one-off run

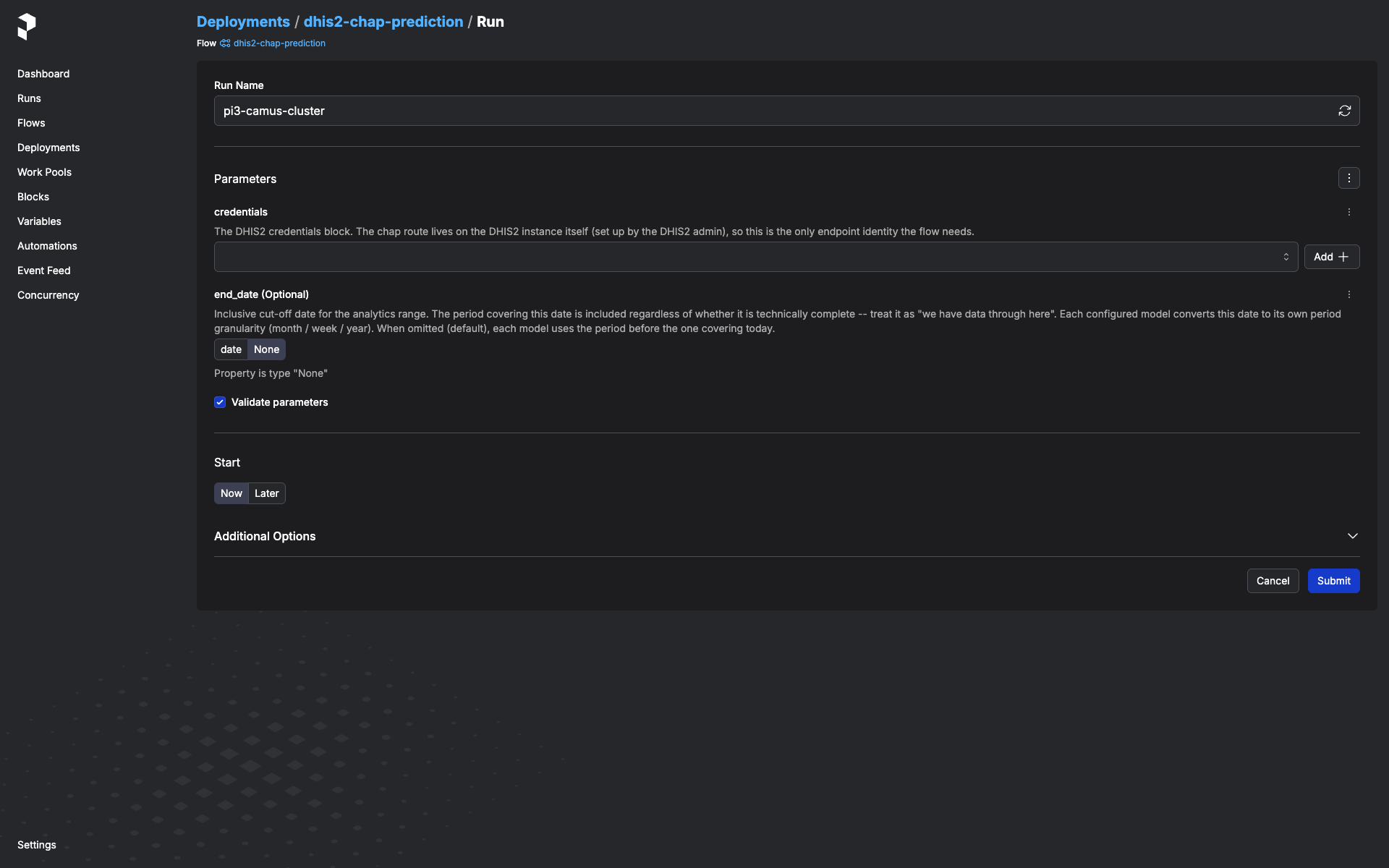

In the Prefect UI:

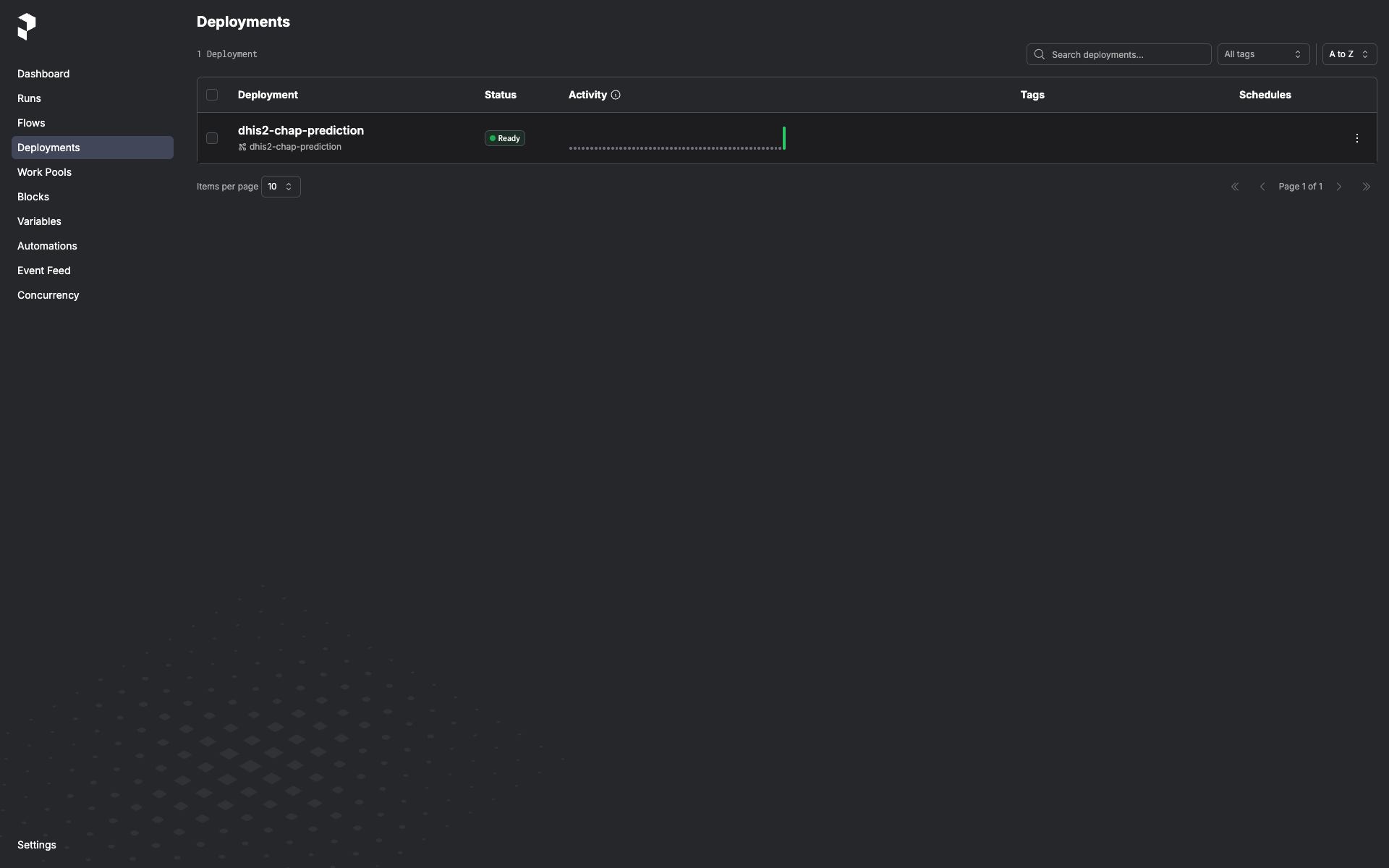

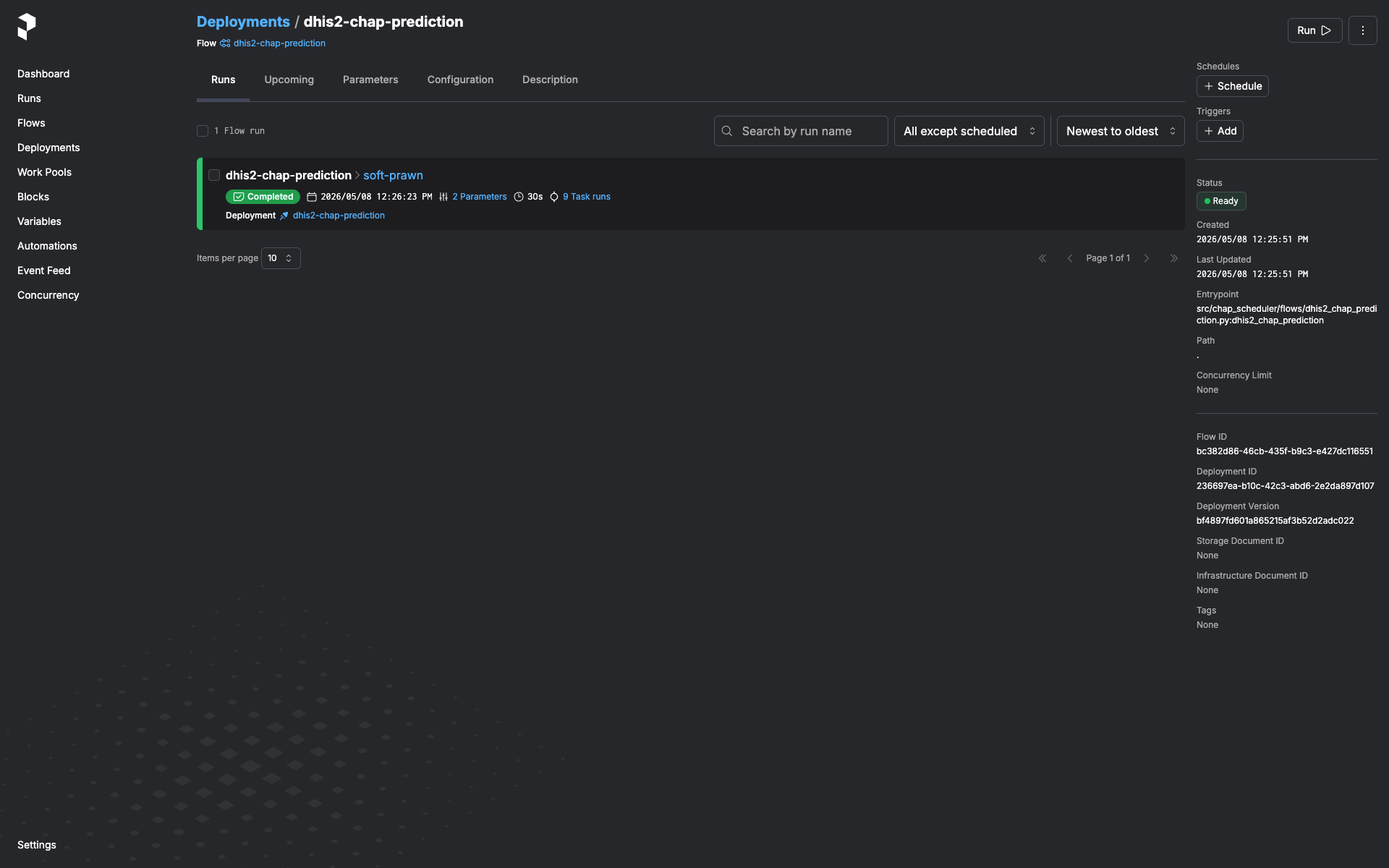

1. Deployments → dhis2-chap-prediction.



2. Run → Custom run.



3. Pick the Dhis2Credentials block from the dropdown.

4. Pick the end-of-window mode in the end_mode dropdown:
5. calculated (default) -- probe DHIS2 for the latest period with full covariate coverage. Ignores end_date and end_period_offset.
6. fixed -- pin to the period covering end_date. Treat the date as "we have data through here". Requires end_date.
7. offset -- use the period end_period_offset steps back from today (0 = current/in-progress, 1 = last complete, ...). Pure compute, no probe; useful for scheduled runs that want a stable look-back regardless of when DHIS2 last imported. Requires end_period_offset (>= 0).
8. (Optional) Set configured_model_id to scope the run to a single configured-model-with-data-source row by its id; leave blank to process every row (default).

9. Submit.

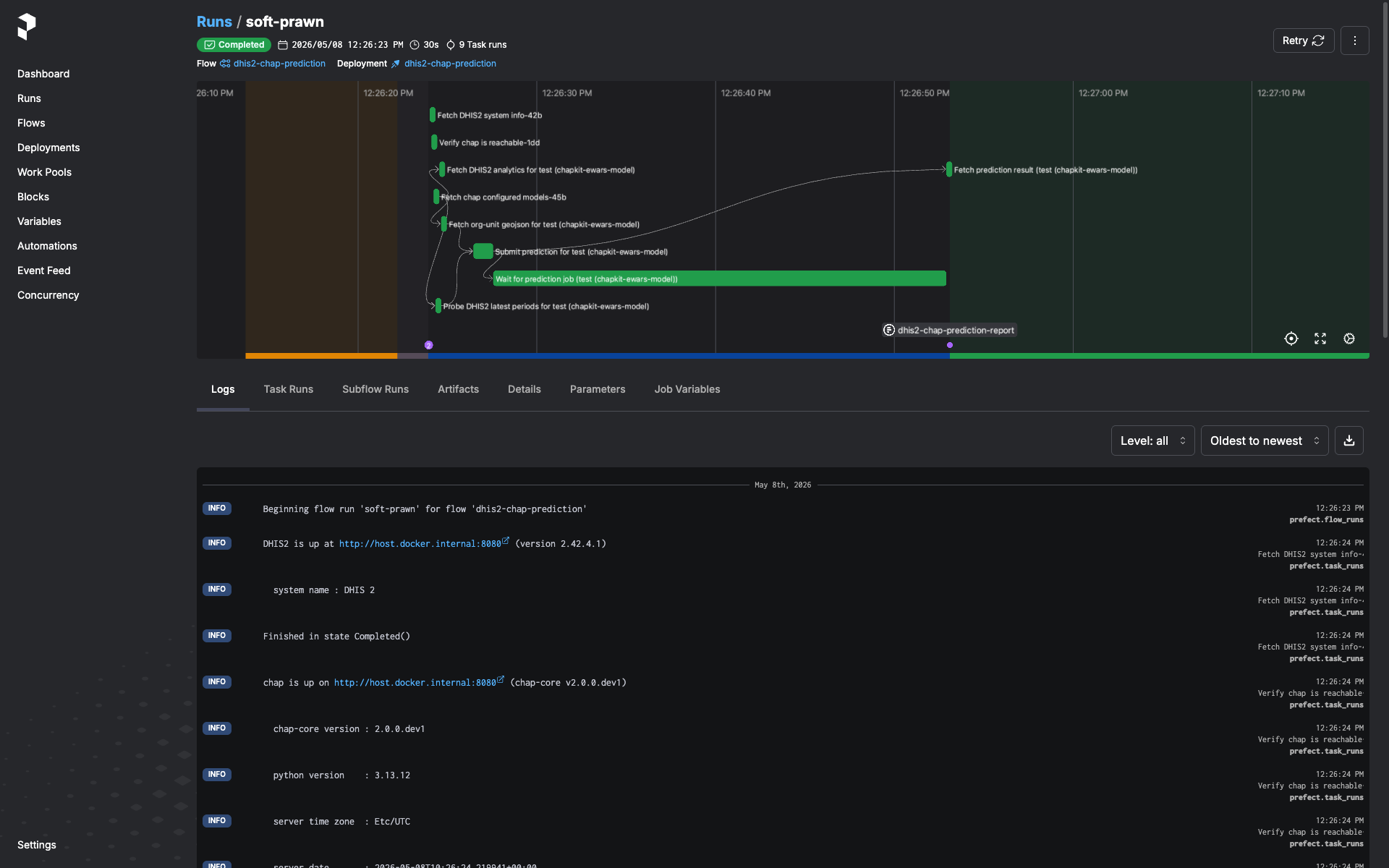

The run lands in the run list. Click it to see logs and, once it finishes, the run-report artifact (see next section).

Schedules

The flow itself ships without a baked-in schedule (see Architecture for why). Add a cron trigger via the Prefect UI:

1. Deployments → dhis2-chap-prediction → Schedules tab → + Add Schedule.
2. Pick Cron (or Interval if you prefer), set the cron expression and timezone.
3. Click Edit parameters on the schedule and pin the Dhis2Credentials block instance you want this schedule to use. You can add multiple schedules to the same deployment, each with its own block — e.g. nightly against staging, weekly against production.

The schedule will start firing immediately. Disable it from the same UI.

Reading the run-report

Every run emits a markdown artifact named dhis2-chap-prediction-report. Open the run in the Prefect UI → Artifacts tab. The report contains:

• DHIS2 system info (version, server time, instance URL) and chap system info (chap-core version, Python version, server timezone) — pinpoints what the run actually talked to.
• Per-model section. For each configured-model-with-data-source the flow tried:
  • Status (succeeded / failed).
  • On failure: which step (e.g. fetch_dhis2_for_model, submit_prediction, wait_for_prediction) and the error message.
  • For chap rejections (HTTP 400 with structured detail): the per-(orgUnit, featureName) "missing values" breakdown grouped by reason and time period.
  • On success: prediction id, analytics-row count, org-units covered, periods covered, predicted-period list.

The artifact is always written, including when DHIS2 or chap was unreachable end-to-end (you'll see dhis2_error / chap_error set instead of system info).

Rotating DHIS2 credentials

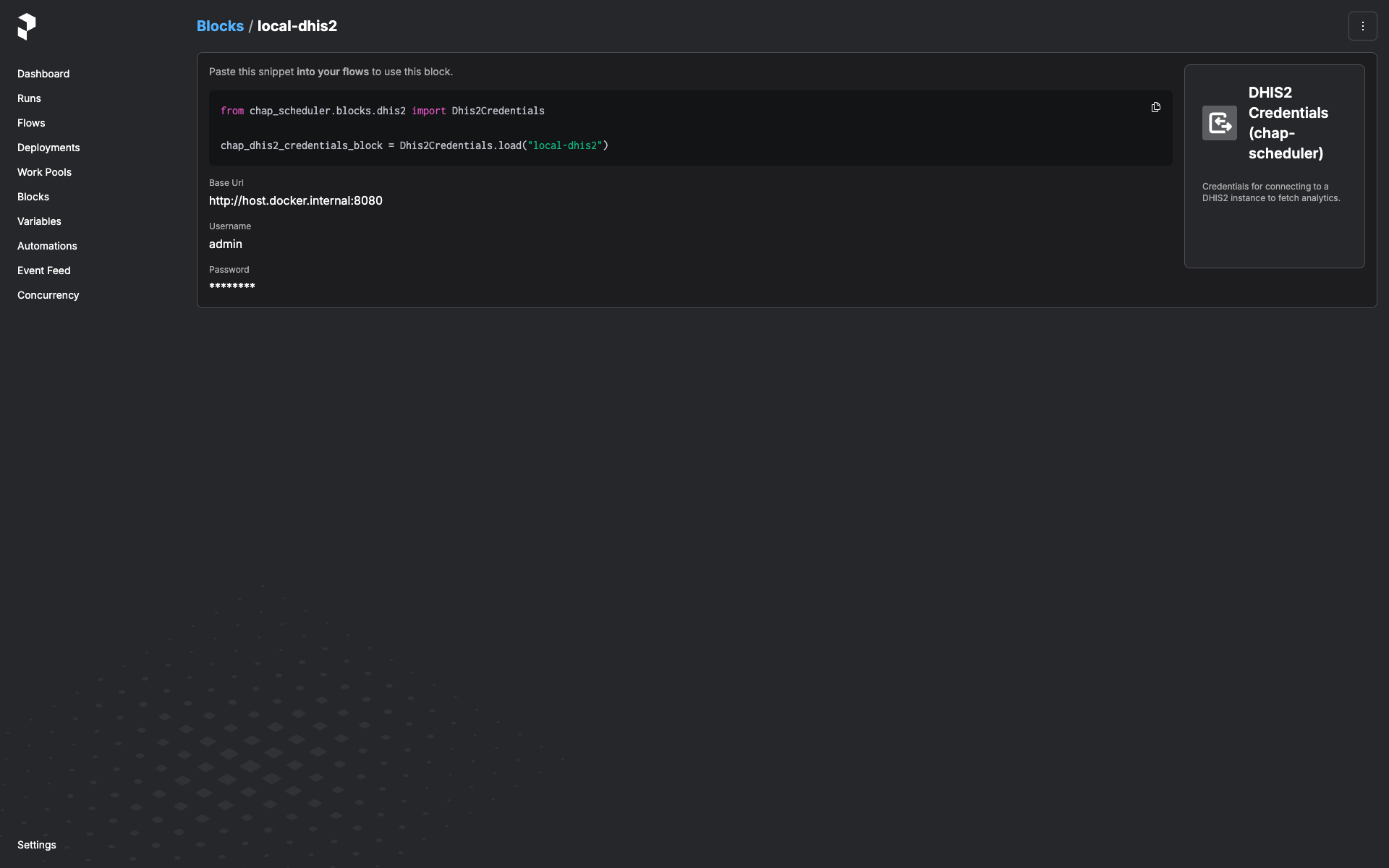

In the Prefect UI: Blocks → click the block → Edit → update password → save. The next flow run that uses this block picks up the new value. No service restart, no env-var rewrite.

A flow run that's already in flight keeps the old password — block values are loaded once at the start of the run and held in memory for the duration. If you've rotated because the old password is compromised, cancel any in-flight runs from the Prefect UI and let them re-trigger against the new value.

Deploying beyond loopback

The default compose.yml is sized for "run on the operator's laptop". A few defaults flip from "fine" to "footgun" the moment the stack is exposed to anything other than localhost — call them out explicitly before binding to a public interface.

• Prefect UI is unauthenticated. It can read every saved Dhis2Credentials block (passwords are encrypted at rest, but the UI decrypts them to show the Edit form) and trigger flow runs against any of them. compose.yml binds to 127.0.0.1:9090 only. To expose the service, put a reverse proxy with auth (oauth2-proxy, Authelia, Cloudflare Access, …) in front and do not publish 9090 directly.
• Postgres password is the literal prefect. Hard-coded in compose.yml (both on the postgres container and in the chap-scheduler service's PREFECT_API_DATABASE_CONNECTION_URL). Fine on a loopback-bound stack since the postgres port isn't published — but if you copy this compose file to a shared host, change both occurrences to a real secret and feed them in via env vars or a secrets backend.
• No request-size limits on the Prefect API. Whatever Prefect ships by default. If you put a reverse proxy in front, set a sensible client-body limit there too.

Scalability envelope

The flow holds the whole input batch in memory for the duration of a run — there's no chunking, no streaming, no preflight cardinality estimate. Per configured model, peak memory is roughly:

• Analytics rows from DHIS2. (covariates × periods × org_units) rows, each ~250 bytes serialized. A national-scale run with 5 covariates × 60 months × 1,000 org units ≈ 300k rows ≈ 75 MB.
• chap request body. The JSON-encoded prediction request (observations + GeoJSON + metadata). Typically 2-3× the analytics-row memory because each observation becomes a small JSON object.
• Org-unit GeoJSON. Usually a few MB even for thousands of org units; not the bottleneck unless geometries are unusually dense.

The compose worker's mem_limit is 2 GiB. Deliberately generous — typical national-scale runs peak well under 200 MB — but bounded so the worker fails loud rather than dragging the host into swap.

The flow also caps _PERIOD_ENUMERATION_CAP at 120 periods (~10 years monthly / ~2 years weekly / 120 years yearly). A configured model that would walk past the cap raises a validate_period_range failure rather than silently submitting a truncated range.

If you hit OOMKills (or the run-report's "Analytics rows fetched" is unexpectedly large):

1. Check the configured model. A typo in the org-unit list (a country root instead of a leaf set) can multiply the row count by two or three orders of magnitude.
2. Pin the end period. Trigger with end_mode="fixed" + end_date or end_mode="offset" + end_period_offset instead of letting the freshness probe walk back from today; this bounds the period range to what you intended.
3. Raise mem_limit. Override the worker's mem_limit in your deployment's compose file. 2 GiB → 4 GiB is usually more than enough.
4. Split the model. If a single configured-model-with-data-source has a country-scale org-unit list and several years of monthly history, consider splitting it into per-region configured models on the chap side. Each runs as its own per-model entry in the same flow run.

A preflight cardinality estimate (probing DHIS2 for the row count before the full fetch) is a roadmap item.

Common troubleshooting

"All regions rejected due to missing values" on every model

The prediction fired before DHIS2 had data for one or more required covariates in the most recent period. Check the run-report's rejection detail — the listed featureName and timePeriods tell you which covariate is lagging.

If this is chronic for a covariate (typical for climate data lagging the disease-cases pipeline), expect the freshness probe to step the end period back a month or two automatically; the prediction will simply target an earlier window than "today minus one period".

start period after end period

The configured model's startPeriod is later than the end period the flow resolved (via probe, fixed date, or offset). This is a configuration issue on the chap side — the configured model needs a startPeriod that's actually before any plausible end period.

Prediction stays in PENDING / RUNNING past the timeout

The flow polls chap's job-status endpoint and gives up after CHAP_SCHEDULER_PREDICTION_TIMEOUT_SECONDS (default in config.py). Long-training models may need this raised. Set it in .env or as a container env var.

Worker registered but no deployment shows up in the UI

Check the worker container's logs. flow.serve() registers the deployment only after the Prefect API is reachable; if the chap-scheduler service is still starting, the worker retries in a loop. Once /prefect/api/health returns 200 the deployment will appear.

"Spawning a second Prefect server"

If you see Prefect logging "starting ephemeral server" from the API container's logs, something in the API process is constructing a Prefect client without PREFECT_API_URL set. This shouldn't happen in the shipped code — block-type registration is intentionally on the worker side for exactly this reason. File a bug if you hit it.

CLI reference

chap-scheduler --version             # version
chap-scheduler info                  # resolved config (env-driven)
chap-scheduler serve                 # run the FastAPI server
chap-scheduler register-blocks       # register block types against a running API
                                     # (worker container does this automatically;
                                     #  use this command if you serve standalone)

All settings come from environment / .env, prefixed with CHAP_SCHEDULER_. See .env.example.
